Waste Traps

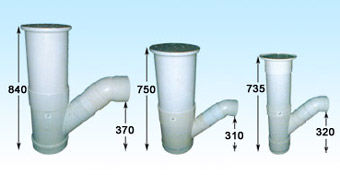

Silt Traps

All Silt Traps Complete include the Bucket, Lid, and Fixed Secondary Strainer with 2mm Holes.

Branches in Riser made to order.



Code Size
S225150
225mm x 150mm
S225100
225mm x 100mm
S150100
150mm x 100mm



Silt traps height can be cut down or raised to suit installation requirements.

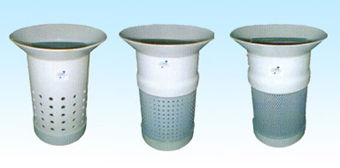

PVC Silt Trap Buckets
225mm and also 150mm size Buckets available.



Code Hole Size
(150mm Buckets)

B1503
3mm
B1505
5mm
B15010
10mm
(225mm Buckets)

B2253
3mm
B2255
5mm
B22510
10mm



 Technical Drawings of Storm Plastics PVC & HDPE Silt Traps



Click on the drawings for a PDF which can be downloaded or printed out



CustomInletDrawingfo1.jpg - small

Custom Inlet Drawing for Silt Traps

S225150.JPG - small

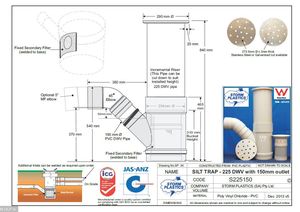

S225150

S225100.JPG - small

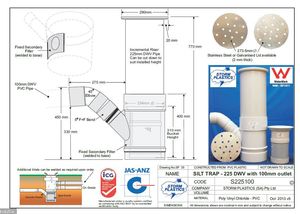

S225100

S150100.JPG - small

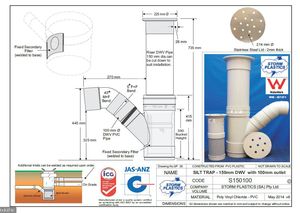

S150100



HDPE Silt Trap in two sizes and Storm Plastics suggested Maintenance Cleaning Instructions for Silt Traps

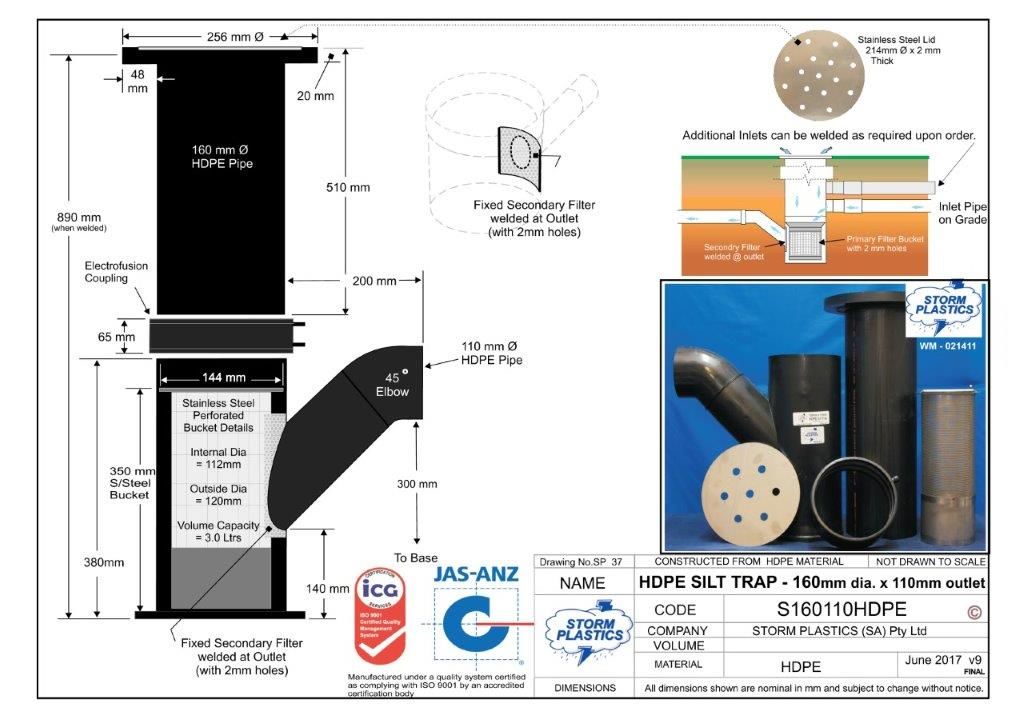

S160110HDPE.jpg - small

S160110HDPE

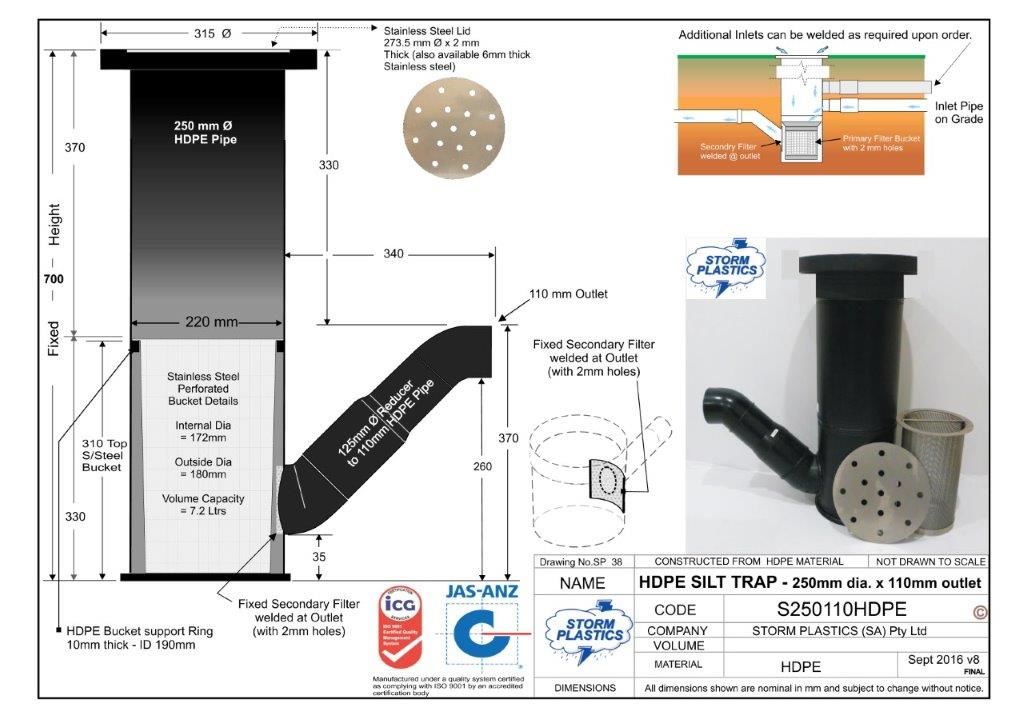

S250110HDPE.jpg - small

 S250110HDPE

MaintenanceCleaningI1.jpg - small

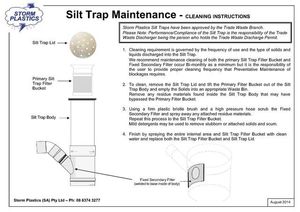

 Maintenance Cleaning Instructions for Silt Trap

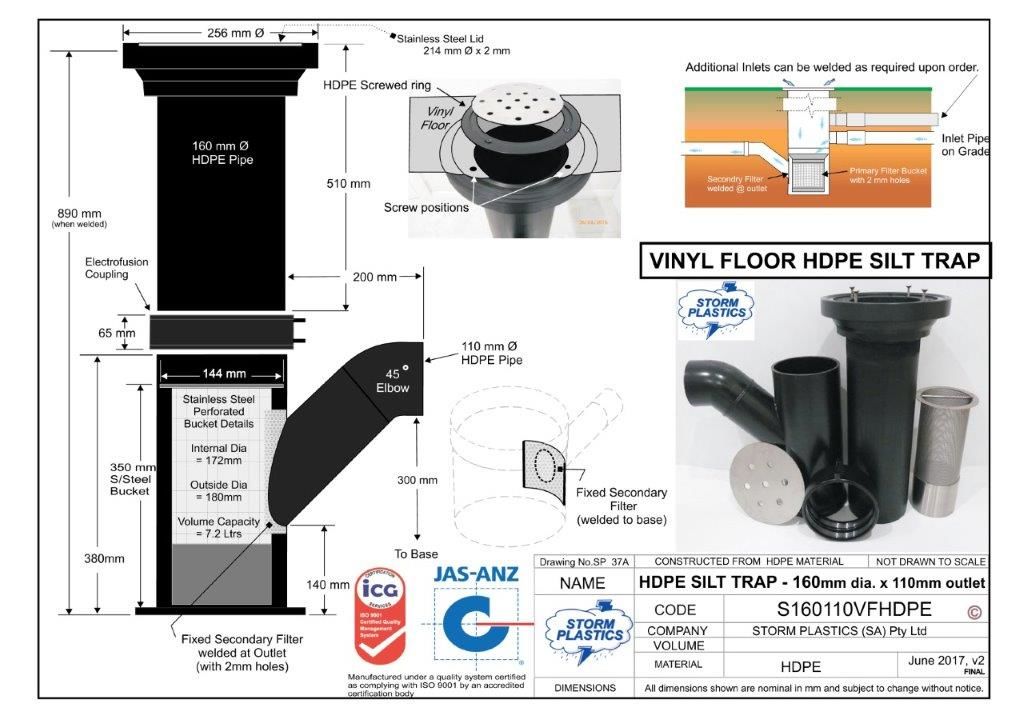

S250110VFHDPE



 Silt Trap Buckets in Stainless Steel



B150SS1.5.jpg - small

B150SS1.5

B160SS1.5HDPE.jpg - small

B160SS1.5HDPE

B225SS1.5.jpg - small

B225SS1.5





Silt Trap Buckets in PVC



B1503.jpg - small

B1502

B1503.jpg - small

B1503

B1505(1).jpg - small

B1505

B15010.jpg - small

B15010

B2252SiltTrapBucket21.JPG - small

B2252

B2253.jpg - small

B2253

B2255.jpg - small

B2255

B22510.jpg - small

B22510



Silt Trap Lids

Spacer 10mm

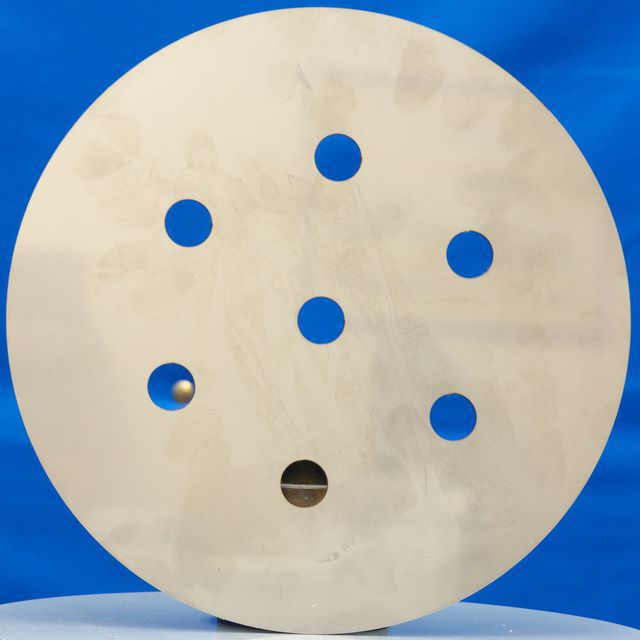

L1502SS.jpg - small

L1502SS

L2252.jpg - small

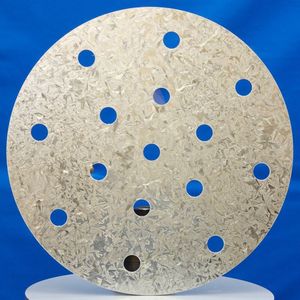

L2252

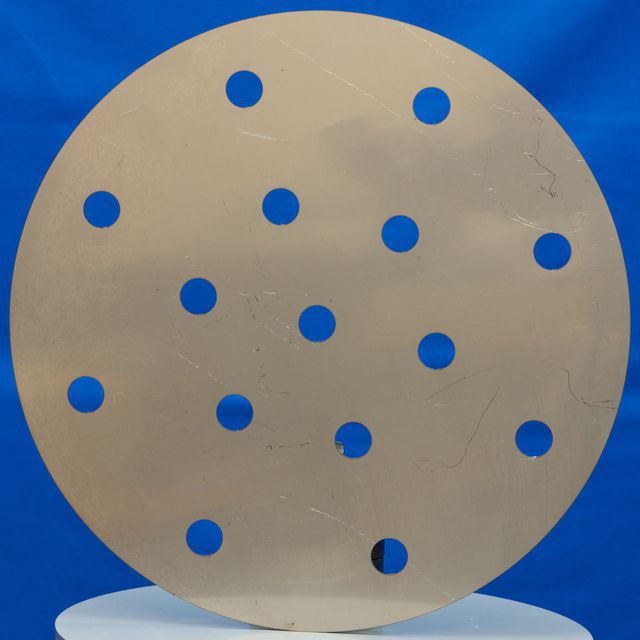

L2252SS.jpg - small

L2252SS

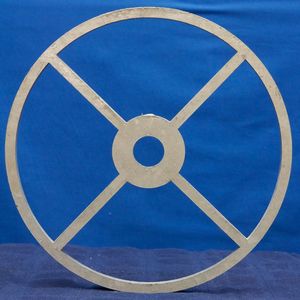

LS22510(1).jpg - small

LS22510



Silt Trap Increments PVC

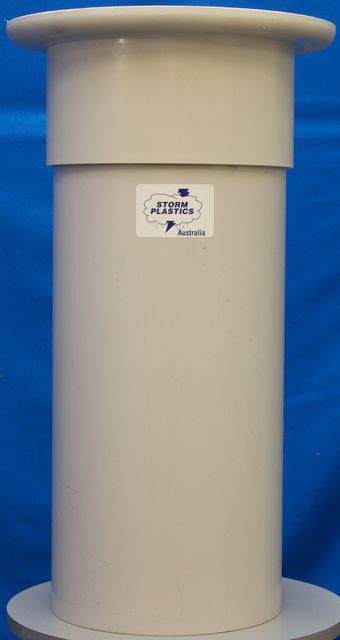

S150400.jpg - large

S150400

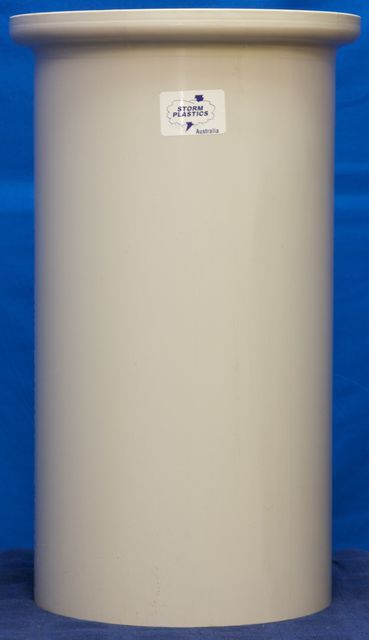

S225475.jpg - large

S225475

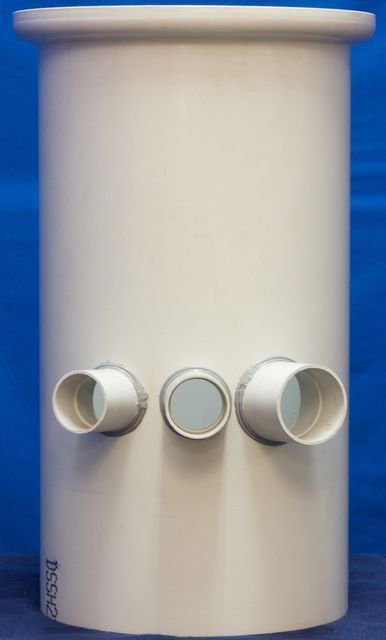

S225475i.jpg - large

S225475i

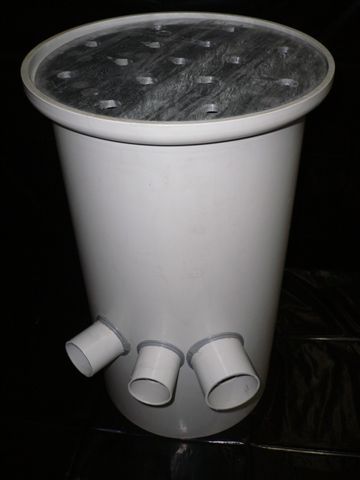

SiiltTrapIncrement-f1.jpg - large

Alt view S225475i



PVC increments come with all our Storm Plastics Silt Traps, as you can see in the pictures above we are able to weld on to the increments what we call "Inlets" in both PVC and HDPE.



If Inlets are required we need to know a few things;



1. Pipe size for the additional Inlets you require.

2. Measurement from the top of the Increment to the centre of the Inlet.

3. Position of the inlet in relation to the outlet, example: outlet being at 12 o'clock with 1 x 50 mm DWV inlet at 3 o'clock and 1 x 40 mm DWV inlet at 6 o'clock.

4. Also all silt traps have a fixed secondary filter with 2mm holes as can be seen in the attached drawings.



For HDPE inlets use the same clock method to work out inlet position.

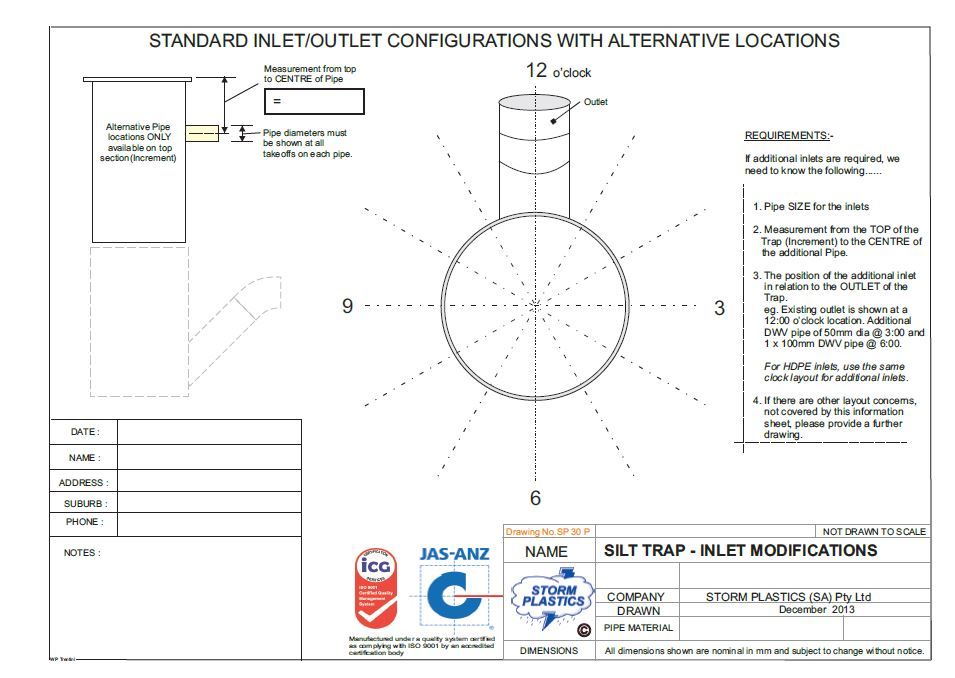

5. To assist the installer please click on "Custom Inlet Drawing for Silt Traps" and fill in your requirements, if you require any help with the details on the form please call Shaun Mellors at Storm Plastics on 08 8374 3277



 CustomInletDrawingfo1.jpg - smallCustom Drawing for Silt Traps





HDPE Silt Traps

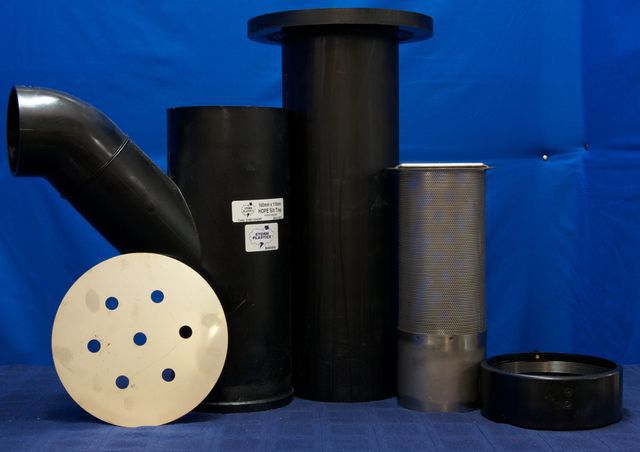

HDPE Silt Trap complete with Increment, Stainless Steel Lid and Bucket with 1.5 mm holes



and Fixed Secondary Strainer with 2mm Holes



Below is our 160 mm x 110 mm Silt Trap and 250 mm x 110 mm Silt Trap



Click on below item code for a technical drawing of the HDPE Silt Trap



S160110HDPE(1).jpg - large

S160110HDPE



S250110HDPE.jpg - large

S160110VFHDPE



FOR THE FULL RANGE OF SILT TRAPS AND COMPONENTS PLEASE VIEW OUR PRODUCT GUIDE





ProductGuideCover001.JPG - small

PLASTER TRAPS



A Plaster Trap separates materials such as plaster, clay, sand, sediment, precious metals, from waste water. Any material heavier than water can be separated in a Plaster Trap.



Plaster Traps are to be installed in a convenient position under the sink and away from electrical and electronic devices. They require sufficient headroom for removal and emptying of the inner solids Trap bucket. read more



Please note; we manufacture and stock a PVC Lid for our Plaster Traps when required

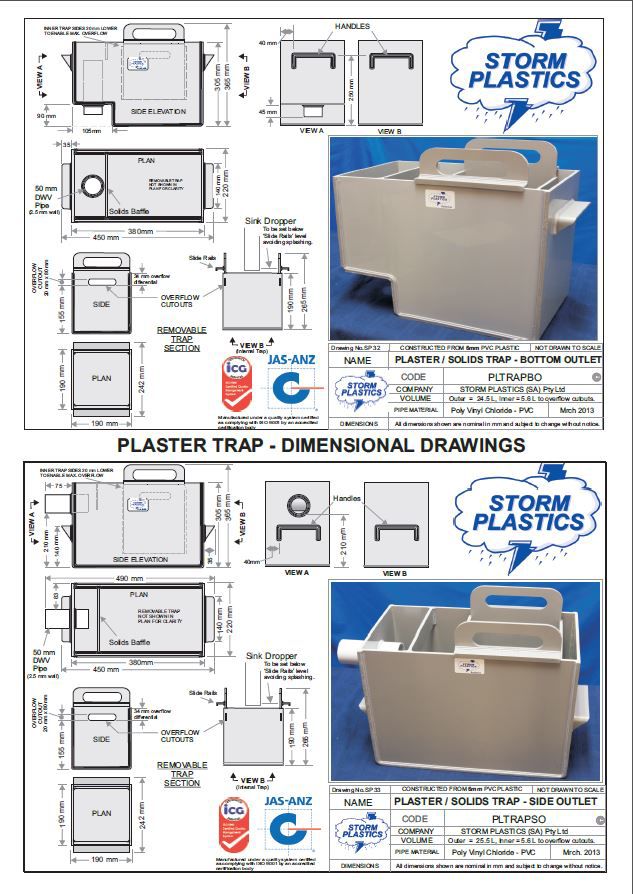

Click on below Links for technical drawings of Storm Plastics Plaster Traps and Installation Guildelines

Plaster Trap Side Outlet

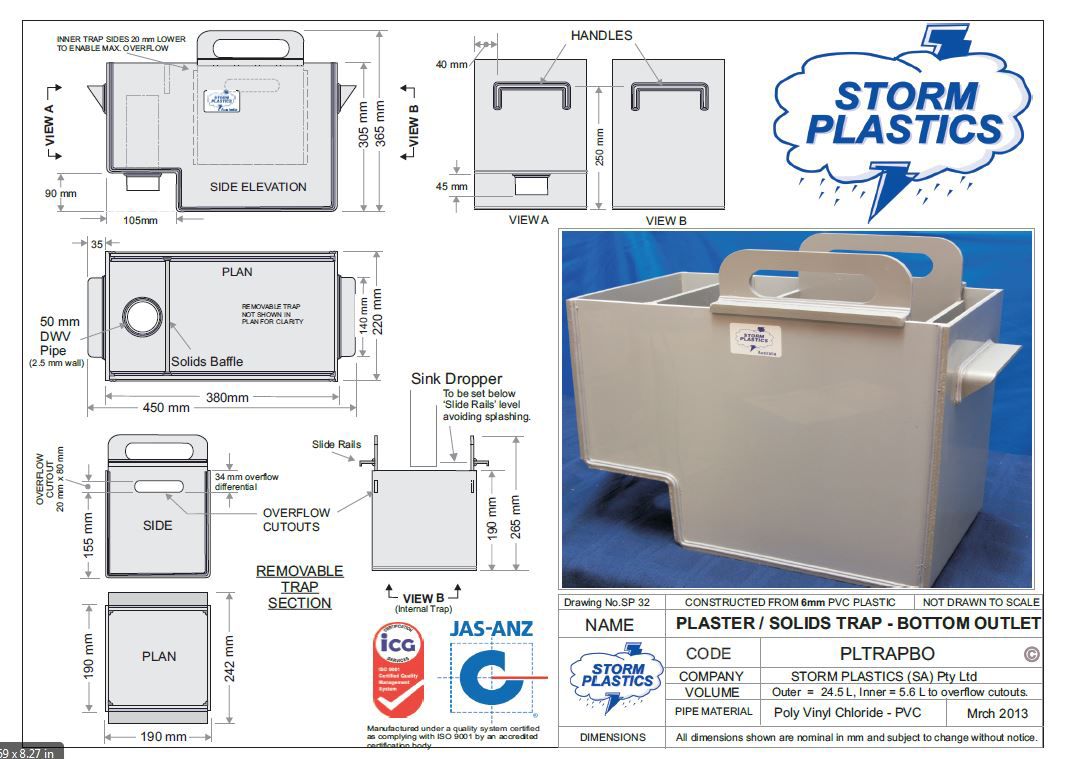

Plaster Trap Bottom Outlet

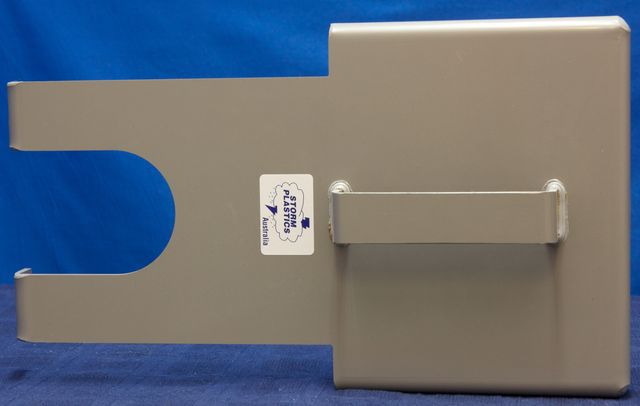

Plaster Trap Lid

PLTRAPINSTALL1.JPG - small

PLTRAPINSTALL2.JPG - small

Plaster Trap Installation Guildelines PDF

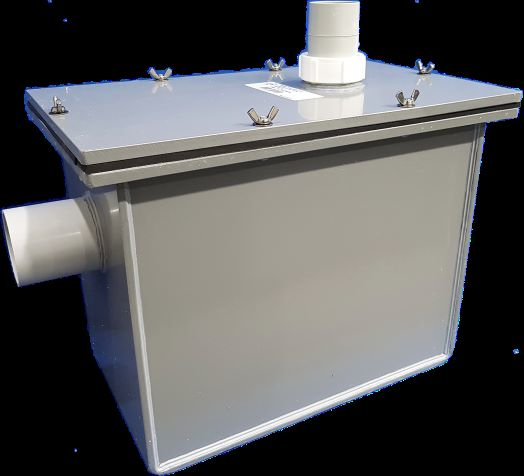

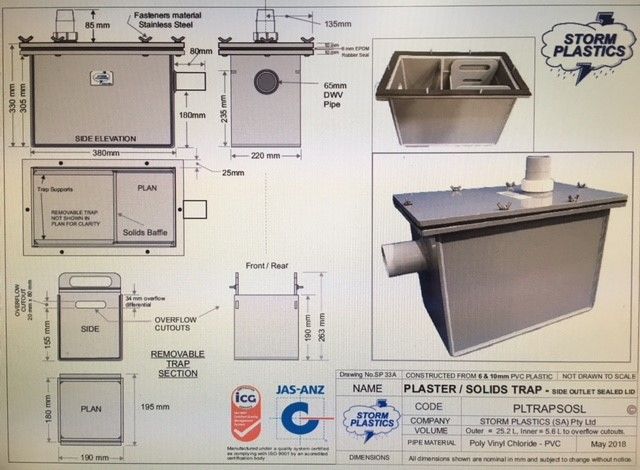

"New Item" A sealed lid Plaster Trap



Dimensions are 450 mm x 250 mm x 350 mm and a capacity of 25.5 Lt



Foam seal with S/Steel wing nuts to secure lid



PLTRAPSOSL1.JPG - small PLTRAPSOSL2.JPG - small



                                                                      Product Code PLTRAPSOSL

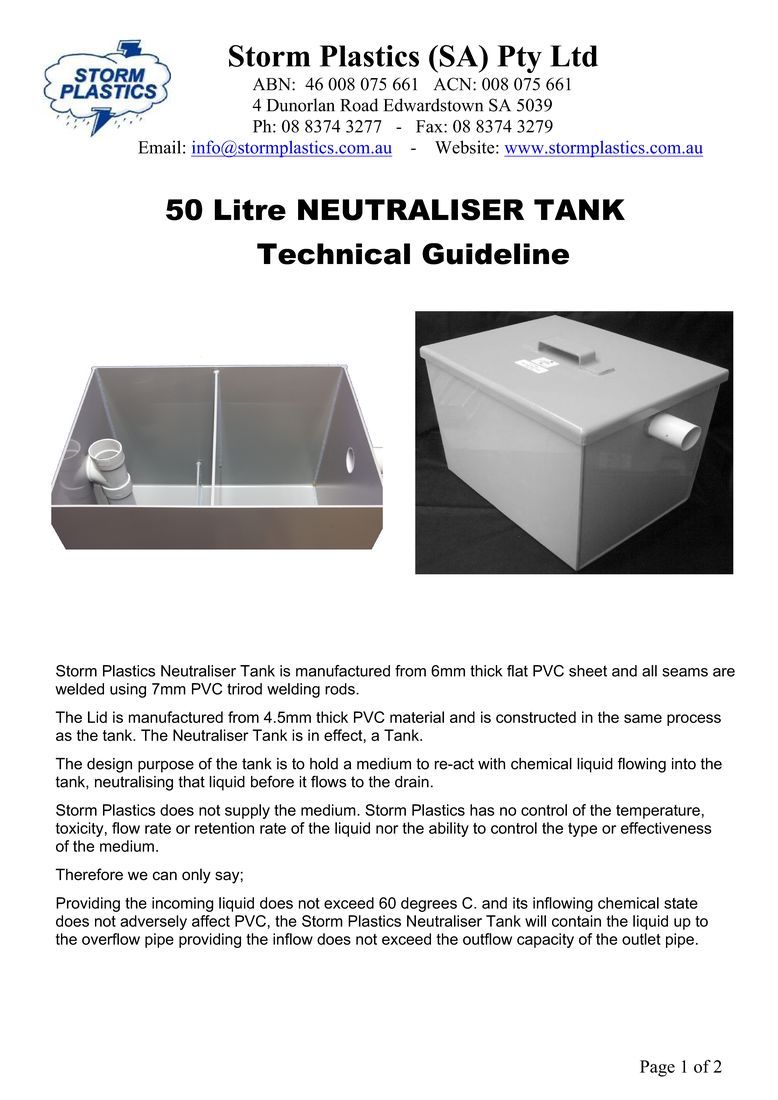

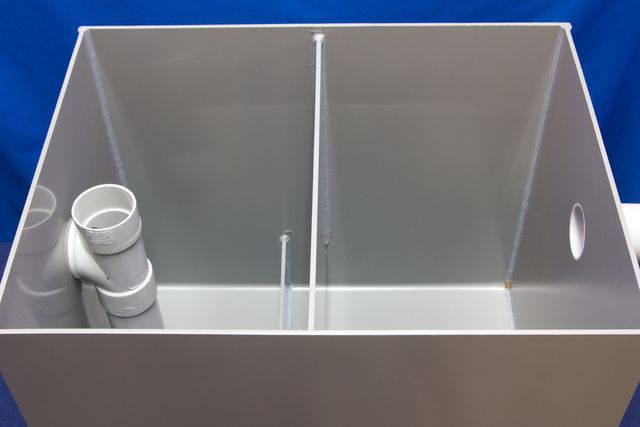

NEUTRALISER TANK



Storm Plastics (NT50) Neutraliser Tank 50lt PVC item measures 500 mm x 400 mm x 450 mm



NT50.jpg - large NT50insideview.jpg - large



Code: NT50
