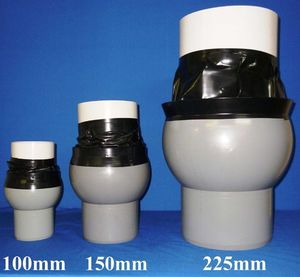

Swivel Expansion Joints PVC






 The swivel expansion joint is an F&M flexible sewer/PVC "knuckle" joint capable of rotating + or - 15º from its axis, combined with the longitudinal expansion, allows stress free installation while at the same time providing flexibility at normally fixed positions to compensate for natural movement of the soil. Wrapped in a water proofing membrane with copper sulphate to deter root intrusion.



The swivel joint will alleviate breakage of pipe line at foundation level and at inlet and outlet of all tank systems.



For use in underground Sewer and Storm water drains, available in 100 mm, 150 mm and 225 mm pipe sizes.







 Swivel Expansion Joints




SIZE

CODE

EXPANSION

OPEN       MEASUREMENT

CLOSED MEASUREMENT

100 mm

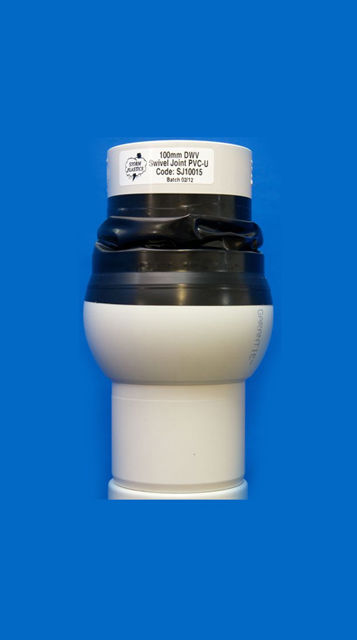

SJ10015

50 mm

325 mm

275 mm

150 mm

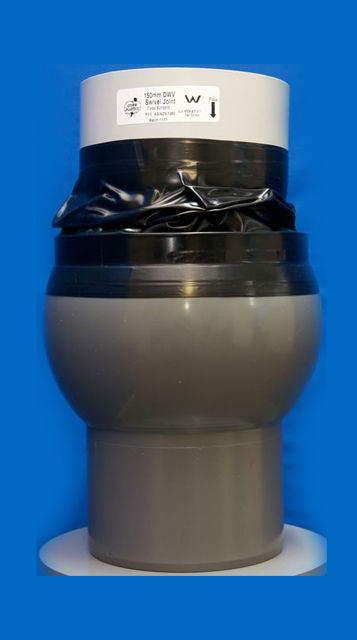

SJ15015

60 mm

435 mm

375 mm

225 mm

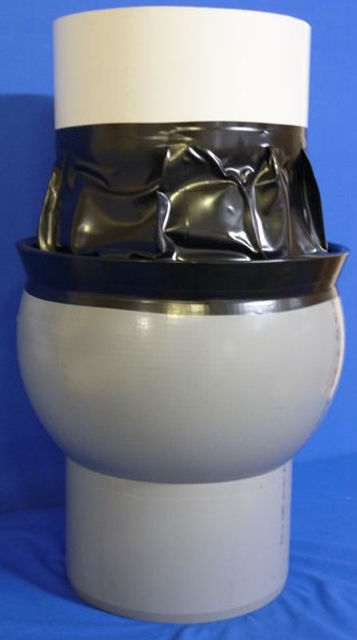

SJ22520

130 mm

650 mm

520 mm



 Click on to ENLARGE pictures or

Click on the links below the pictures for product Technical Drawings






Swivel Combo Joints used in underground Sewer and Storm water drains when space is an issue, the Swivel Combo fittings are only available in 100 mm pipe size. A standard Swivel already has 50 mm movement, these Combo fittings have an extra 50 mm now totaling 100 mm of travel or Expansion.








Storm Plastics Swivel Combo Joints



SIZE

CODE

EXPANSION

OPEN  MEASUREMENT

CLOSED MEASUREMENT

100 mm

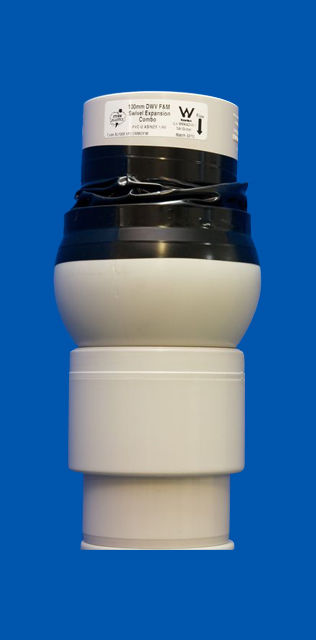

SJ100EXPCOMBOFM

100 mm

425 mm

325 mm

100 mm

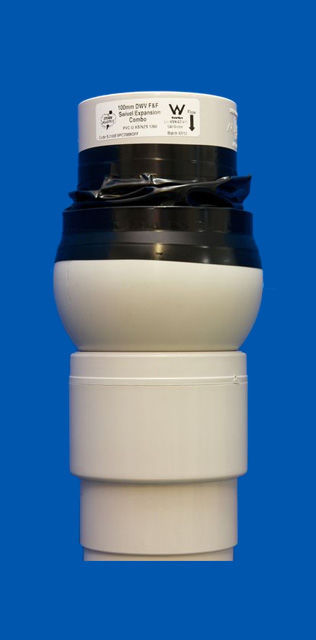

SJ100EXPCOMBOFF

100 mm

425 mm

325 mm

100 mm

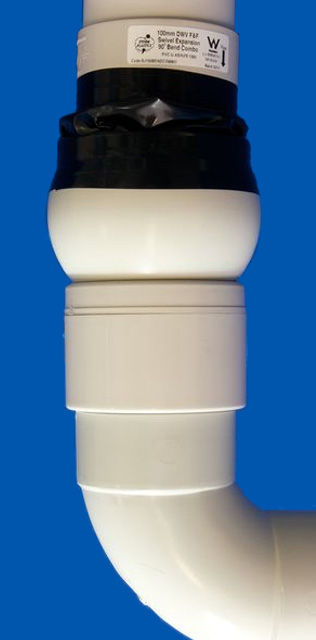

SJ100BENDCOMBO

100 mm

570 mm

470 mm



Click on to ENLARGE pictures or

Click on the links below the pictures for product Technical Drawings













Perfect fitting to be installed anywhere that creep or land slip may be present or a large amount of settlement to occur over time. Units made to order as per customers requirements with up to 500 mm movement.

In house we refer to these as our " Bazookas " or as they are officially called Swivel / Extended Expansion Joints

Comes in 3 configurations which allows  approx + / - 15 - 30 º  rotation either end and various expansion travel.



Contact your nearest plumbing supplier or Storm Plastics for technical advise.






 Custom Swivel Expansion Joints



CODE

DESCRIPTION

SJEXTEJ100

100 mm Extended Expansion Joint PVC (1 Swivel)

DSJEXTEJ100

100 mm Extended Expansion Joint PVC (2 Swivel)

4SJEXTEJ100

100 mm Extended Expansion Joint PVC (4 Swivel)





Click on to ENLARGE pictures below

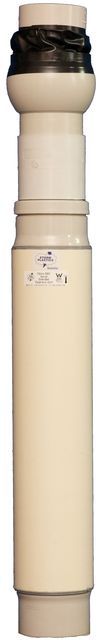

SJ-EXTEJ100

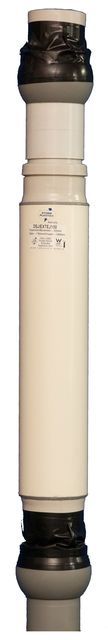

DSJ-EXTEJ100


4SJ-EXTEJ100

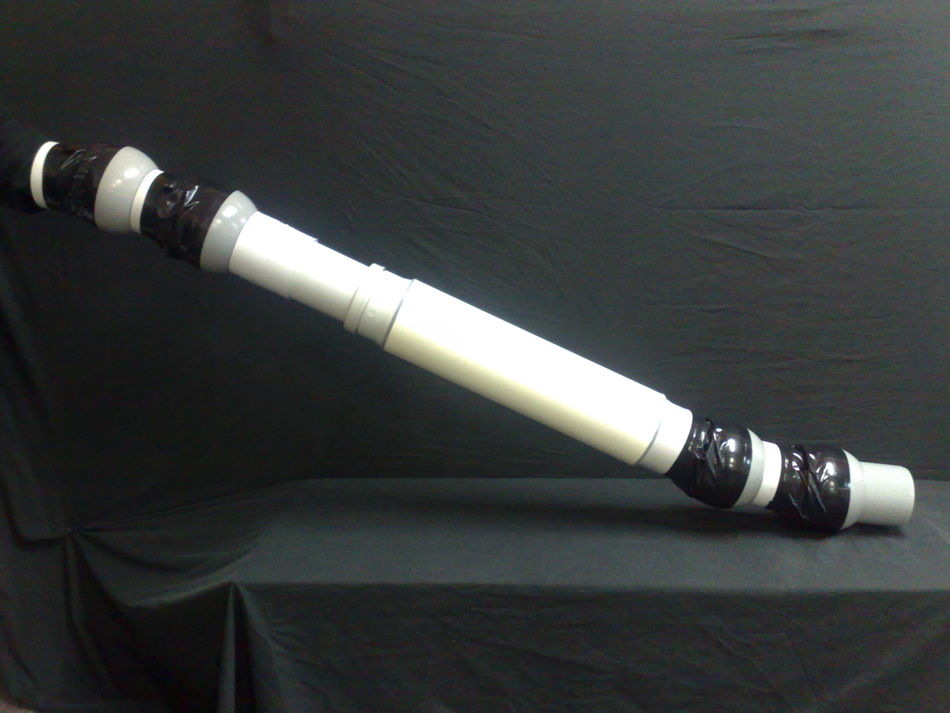

                                                                                   Four Swivel Ext / Expansion Joint Has 60º deflection



Don't say "No it is not available". If you or your customer cannot find that one off item, email or call Storm Plastics. Our creative team can cut, bend, fold, weld up and make almost anything out of pipe or flat plastic.
