Expansion Joints PVC

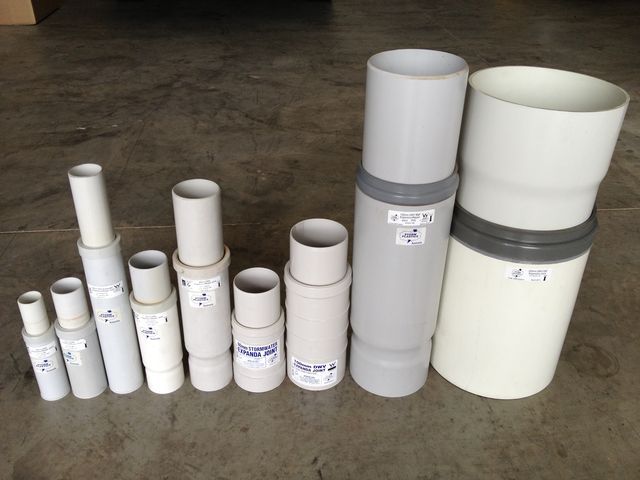

Pipe sizes 40 mm up to 375 mm DWV - PVC

For use in Sewer and Storm water drains

Smaller sizes

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
40 mm	DW4080	80 mm	290 mm	210 mm

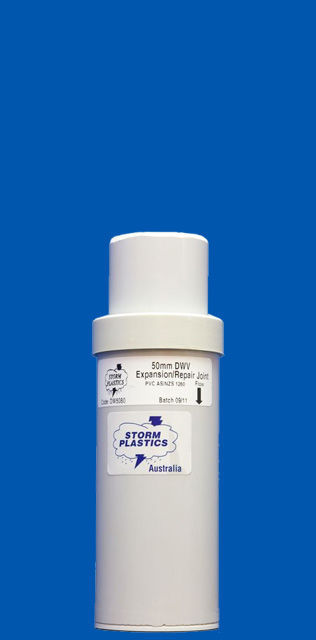

50 mm	DW5080	80 mm	310 mm	230 mm

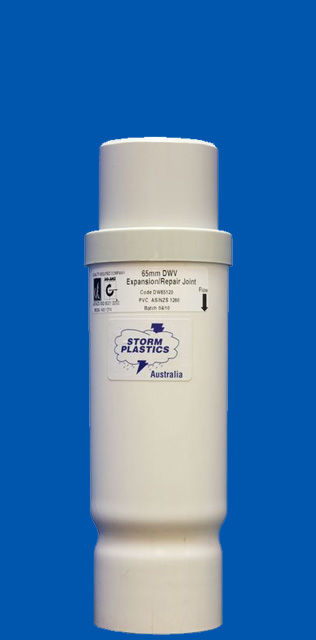

65 mm	DW65120	120 mm	395 mm	275 mm
80 mm	DW80150	150 mm	515 mm	365 mm

Click on the links below the pictures for product technical drawings

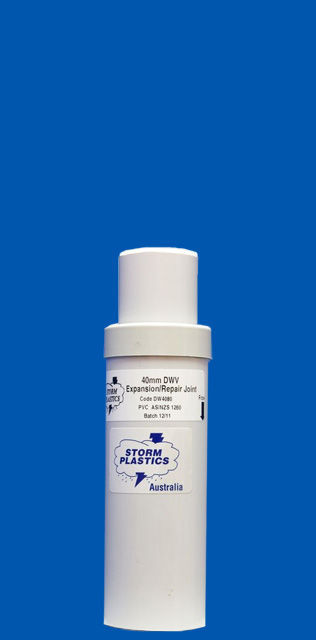

DW4080

DW5080

DW65120

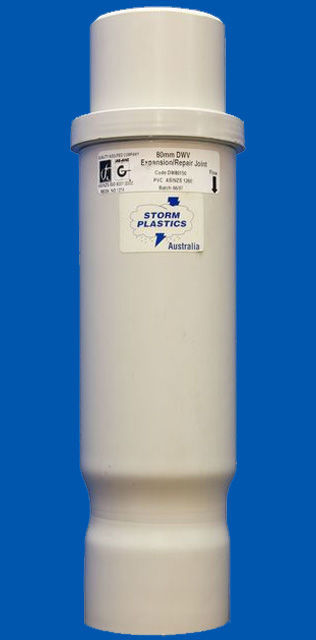

DW80150

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
50 mm	DW50EXTEJ	250 mm	635 mm	385 mm

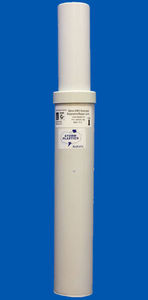

DW50EXTEJhalfwayposi1.jpg - small

DW50EXTEJ

DW50EXTEJatKenmoreSc1.jpg - small

Fully Raised

DW50EXTEJatKenmoreSc2.jpg - small

Fully Lowered

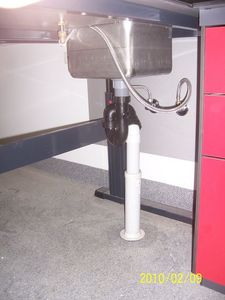

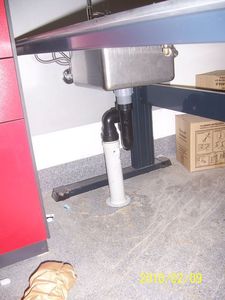

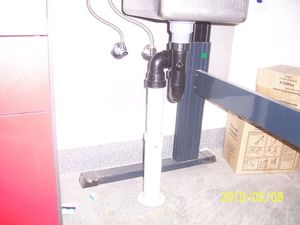

Extendable 50 mm PVC Expansion joint with 250 mm of travel for high school science lab benches. Their requirement was that the lab benches are able to be raised and lowered depending on the height of the students. So the three above pictures are of the DW50EXTEJ raised and also lowered so wheelchair access can be obtained. The pictures don't show the suggested bracket attached to the top of the unit to take the load off the trap and waste during raising and lowering of the bench.

90 mm Stormwater Expanda Joint

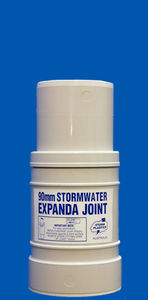

ST9090

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
90 mm	ST9090	90 mm	290 mm	200 mm

100 mm DWV Expanda Joint

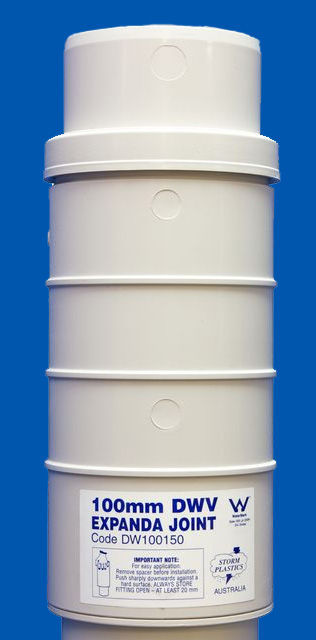

DW100150

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
100 mm	DW100150	150 mm	470 mm	320 mm

100 mm Expansion Joints with 50 mm Movement

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
100 mm	DW10050FF	50 mm	270 mm	220 mm

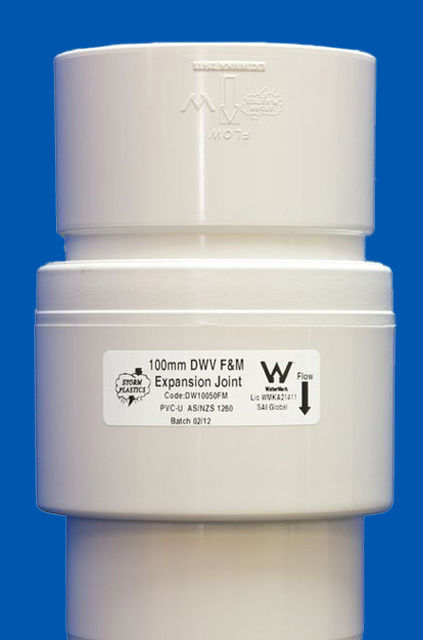

100 mm	DW10050FM	50 mm	270 mm	220 mm

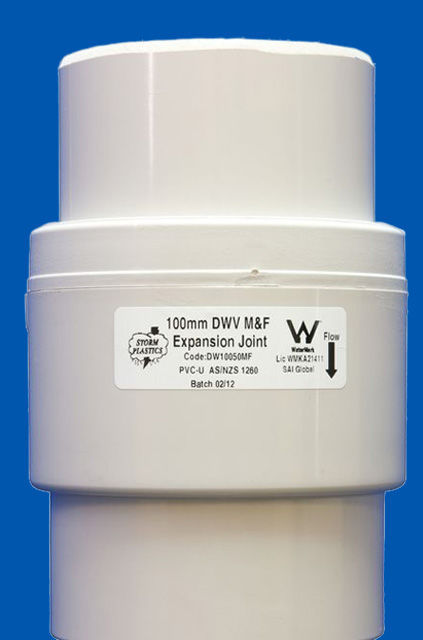

100 mm	DW10050MF	50 mm	250 mm	200 mm
100 mm	DW10050MM	50 mm	250 mm	200 mm

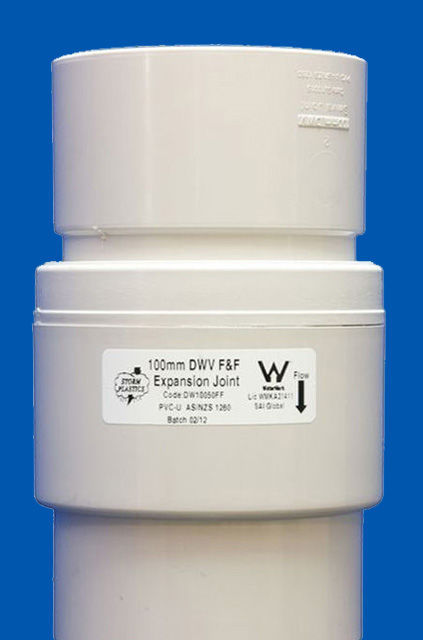

DW10050FF

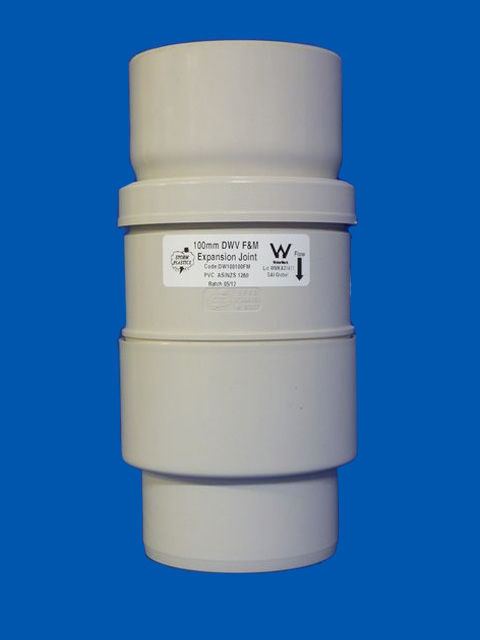

DW10050FM

DW10050MF

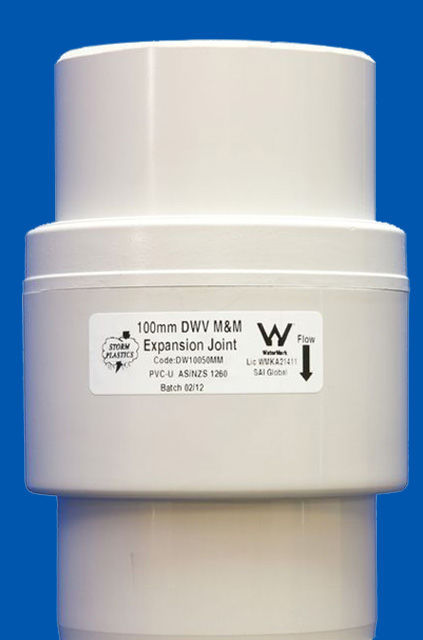

DW10050MM

100 mm Expansion Joints with 100 mm Movement

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT

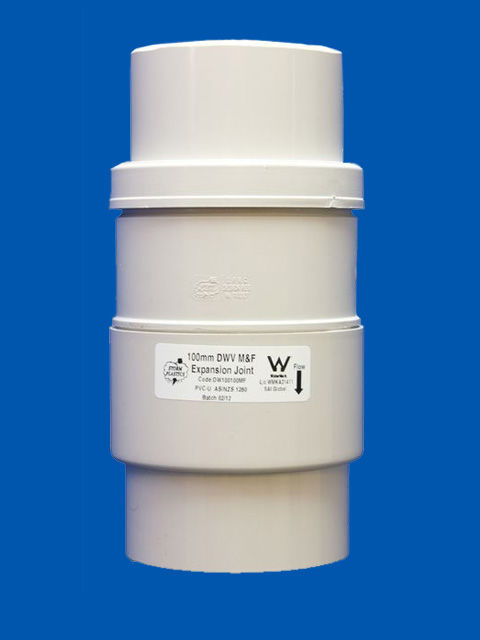

100 mm	DW100100FF	100 mm	365 mm	265 mm
100 mm	DW100100FM	100 mm	365 mm	265 mm
100 mm	DW100100MF	100 mm	365 mm	265mm
100 mm	DW100100MM	100 mm	365 mm	265 mm

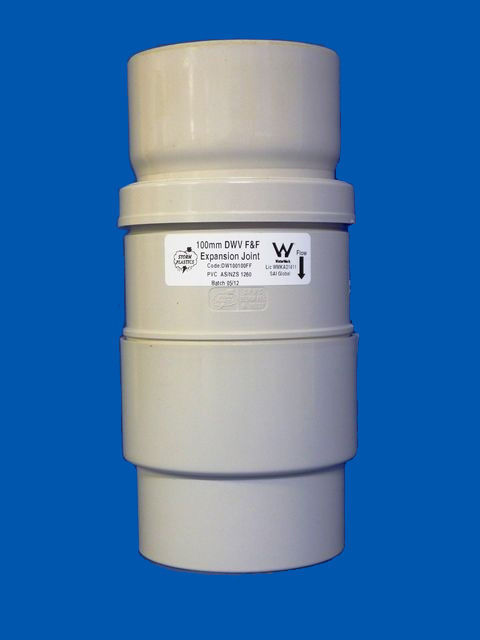

DW100100FF

DW100100FM

DW100100MF

DW100100MM

100 mm Expansion Joints with 150 mm Movement

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
100 mm	DW100150FF	150 mm	455 mm	305 mm
100 mm	DW100150FM	150 mm	455 mm	305 mm
100 mm	DW100150MF	150 mm	470 mm	320 mm
100 mm	DW100150MM	150 mm	460 mm	310 mm

DW100150FF

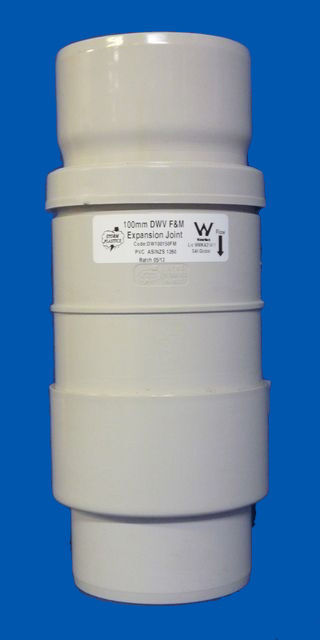

DW100150FM

DW100150

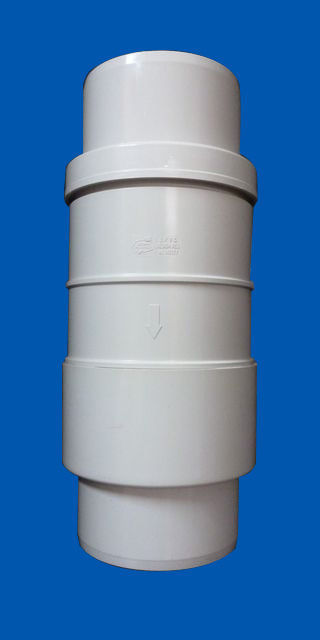

DW100150MM

NEW fitting to the range......

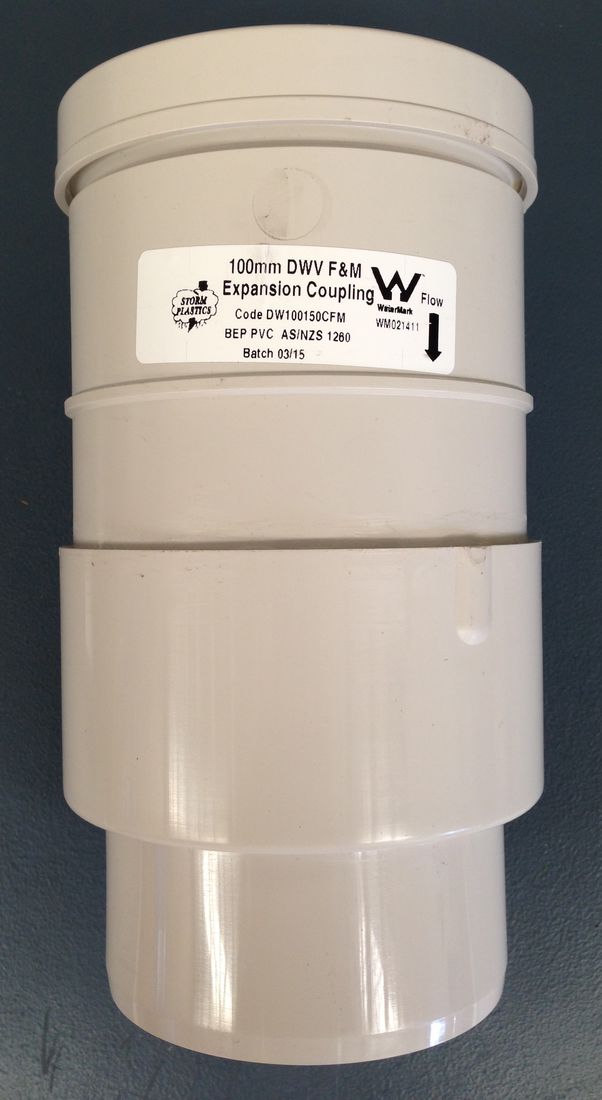

DW100150CFM is a compact fitting consisting of a rubber ring joint one end and a male adaptor the other, suitable to be solvent welded into any socketed fitting it has 150 mm movement, body measures 190 mm

The DW100150C is a rubber ring joint one end and solvent weld the other with 150 mm movement.

This fitting is HDPE compatible

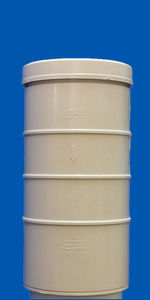

DW100150C

SIZE	CODE	EXPANSION	FITTING MEASURES
100 mm	DW100150C	150 mm	265 mm

100 mm Expansion Joints with 220 mm Movement

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
100 mm	DW100220FF	220 mm	595 mm	375 mm
100 mm	DW100220FM	220 mm	595 mm	375 mm
100 mm	DW100220MF	220 mm	595 mm	375 mm
100 mm	DW100220MM	220 mm	595 mm	375 mm

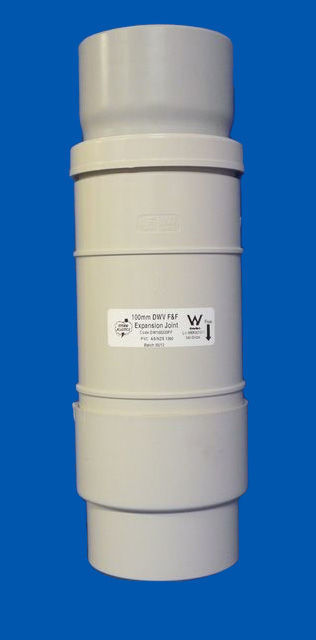

DW100220FF

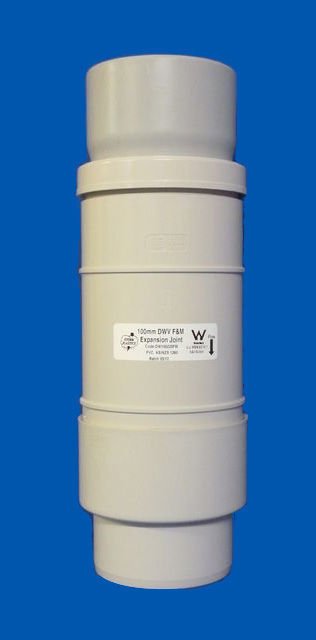

DW100220FM

DW100220MF

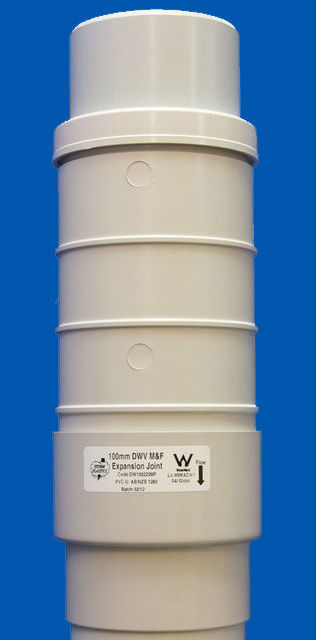

DW100220MM

100 mm Expansion Joints with 280 mm Movement

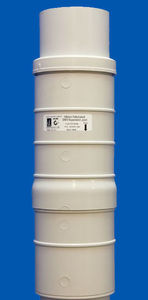

DW100280

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
100 mm	DW100280	280 mm	720 mm	440 mm

100 mm Extended Expansion Joint

(With up to 500 mm movement)

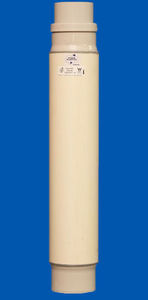

EXTEJ100.jpg - small

EXTEJ100

CODE	PRODUCT DESCRIPTION
EXTEJ100	100 mm Extended Expansion Joint PVC

;

150 mm Expansion Joints with 240 mm Movement

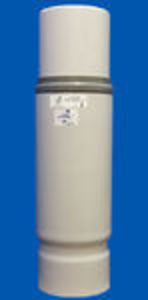

DW150240.jpg - small

DW150240

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
150 mm	DW150240	240 mm	790 mm	550 mm

225 mm DWV Fabricated Expansion Couplings & Joints

Double Rubber Ring Slip Coupling

SIZE	CODE	EXPANSION	FITTING MEASURES
225 mm	DWS225150	150 mm	270 mm
300 mm	DWS300150	150 mm	240 mm
375 mm	DWS375150	150 mm	290 mm

DWS225150

DWS300150

DWS375150

Rubber Ring - Solvent weld Coupling &

Solvent weld both ends, female x female Expansion Joints

SIZE	CODE	EXPANSION	OPEN MEASUREMENT	CLOSED MEASUREMENT
225 mm	DWC225210	210 mm	390 mm	N/A
225 mm	DWEJ225210	210 mm	750 mm	540 mm
225 mm	DWER225345	345 mm	1015 mm	670 mm

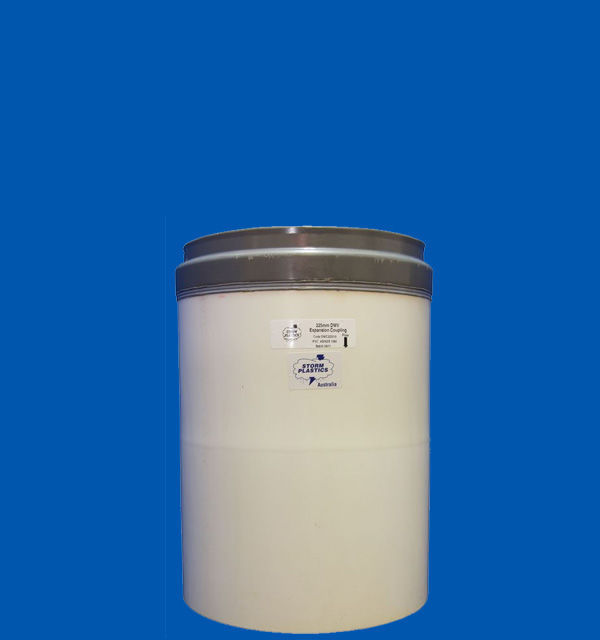

DWC225210

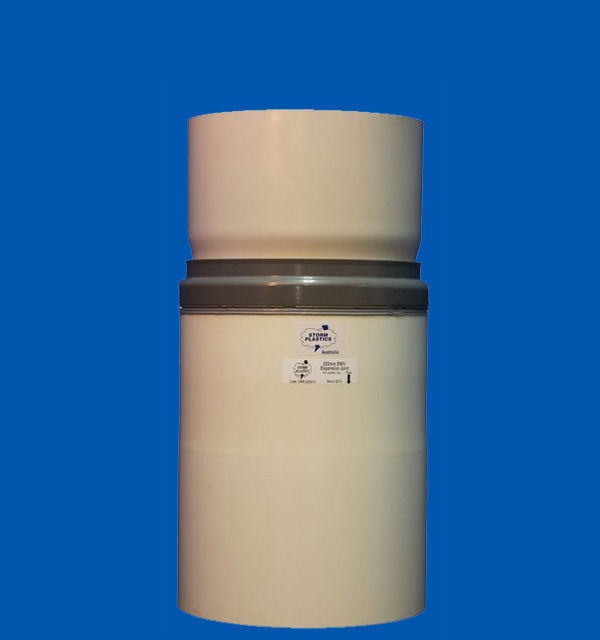

DWEJ225210

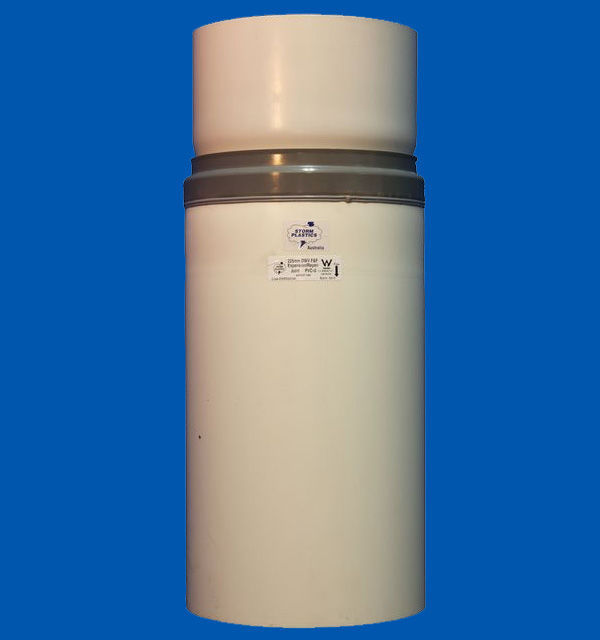

DWER225345
