Fabricated Expansion Bends PVC





For use in Sewer and Storm water drains, available in 100 mm and 150 mm pipe sizes.



100 MM EXPANSION BENDS



SIZE

CODE

EXPANSION

TOP TO INVERT MEASUREMENT

100 mm

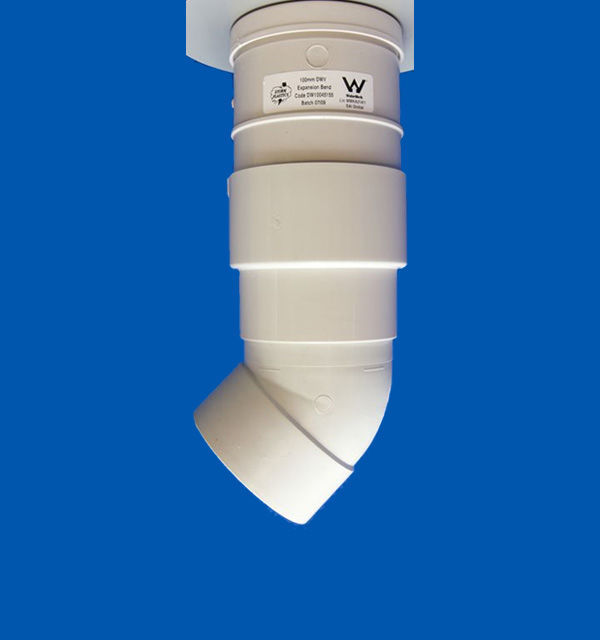

DW10045150

150 mm

300 mm

100 mm

DW10045230

230 mm

390 mm

100 mm

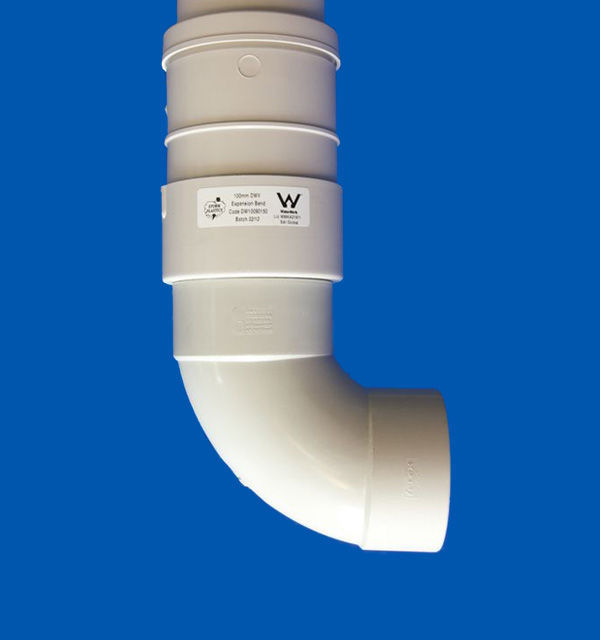

DW10090150

150 mm

330 mm

100 mm

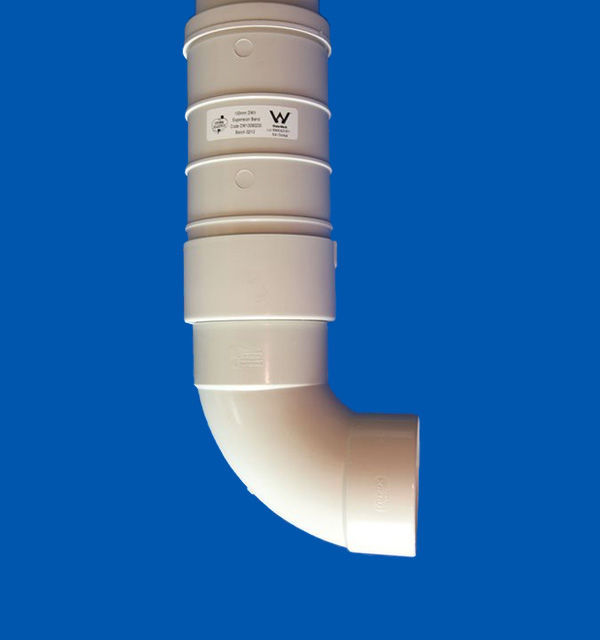

DW10090230

230 mm

420 mm



Click on the links below the pictures for product Technical Drawings

DW10045150

DW10045150

150 MM EXPANSION BENDS



SIZE

CODE

EXPANSION

TOP TO INVERT MEASUREMENT

150 mm

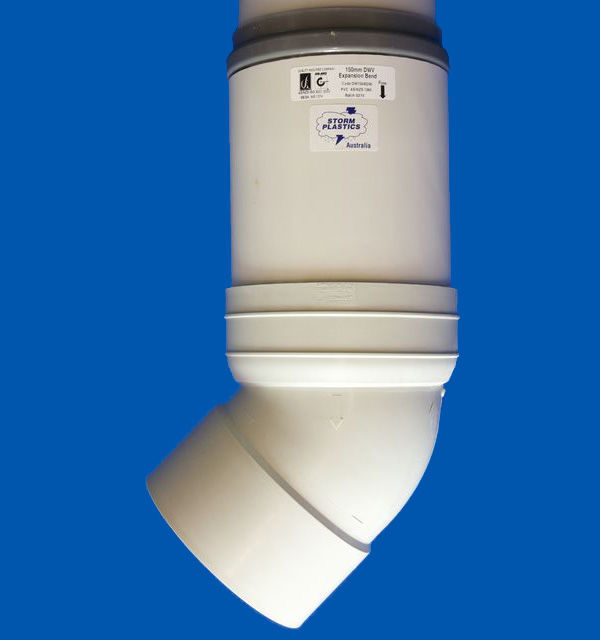

DW15045240

240 mm

470 mm

150 mm

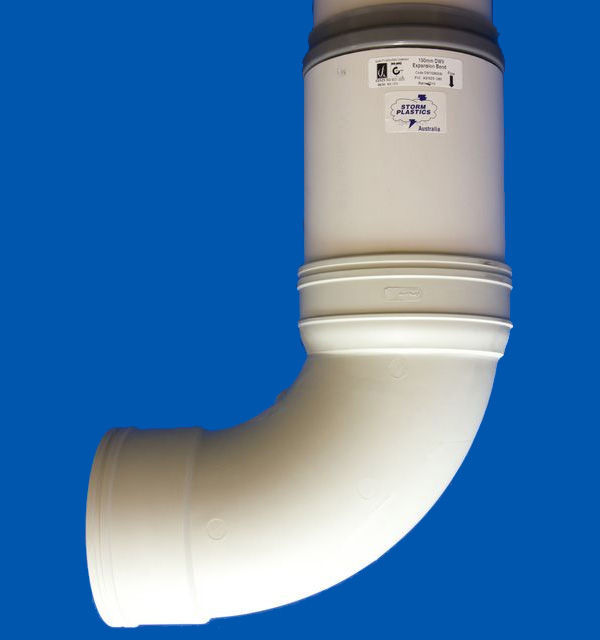

DW15090240

240 mm

520 mm



DW15045240

DW15090240
